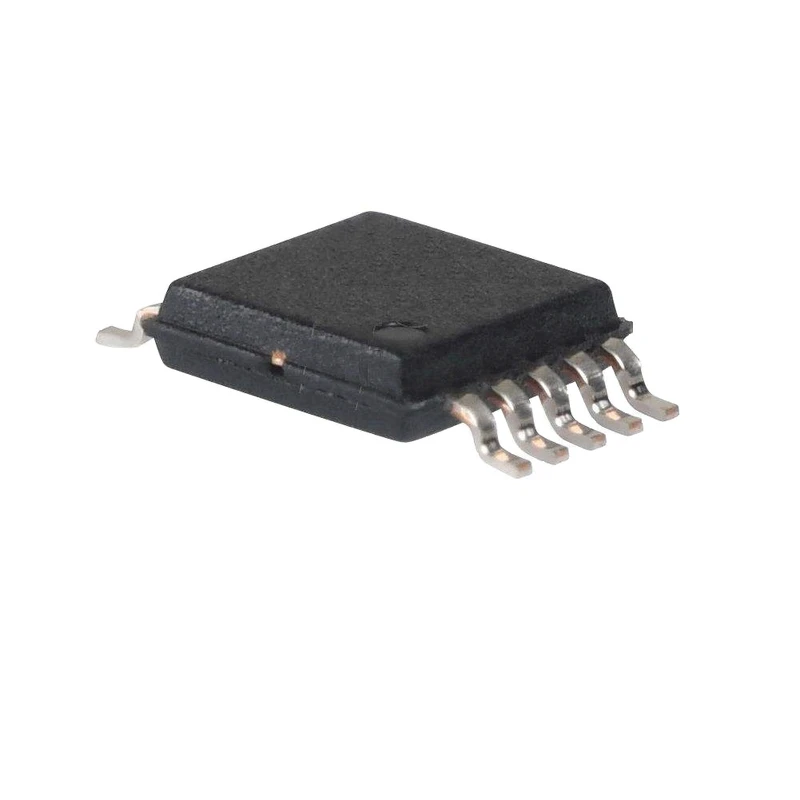

تقویت کننده ابزار دقیق مدل INA333AIDGKR

20x20x5 میلی‌متر

Manufacturer: Texas Instruments Product Category: Instrumentation Amplifiers Series: INA333 Number of Channels: 1 Channel GBP – Gain Bandwidth Product: — SR – Slew Rate: 0.16 V/us CMRR – Common Mode Rejection Ratio: 100 dB Ib – Input Bias Current: 200 pA Vos – Input Offset Voltage: 0.025 mV Maximum Input Resistance: 100 GOhms Supply Voltage – Max: 5.5 V Supply Voltage – Min: 1.8 V Operating Supply Current: 50 uA Minimum Operating Temperature: – 40 C Maximum Operating Temperature: + 125 C Mounting Style: SMD/SMT Package / Case: VSSOP-8 Height: 0.97 mm Length: 3 mm 3 dB Bandwidth: 150 kHz Unit Weight: 0.026 gr
