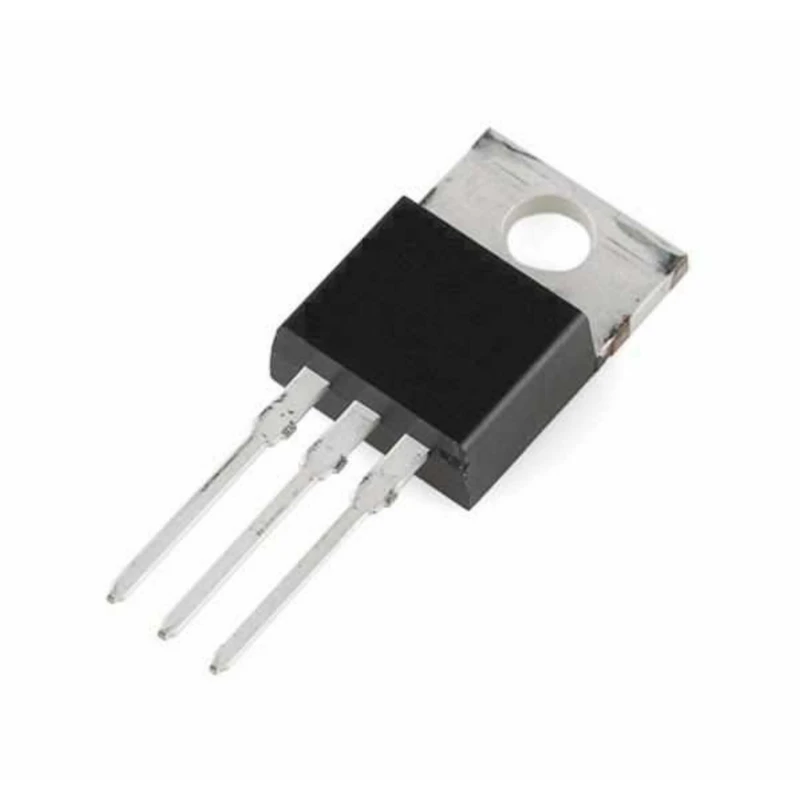

ماسفت کد IRFZ48 بسته 5 عددی

10x20x5 میلی‌متر

Product Category: MOSFET RoHS: No Technology: Si Mounting Style: Through Hole Package/Case: TO-220-3 Number of Channels: 1 Channel Transistor Polarity: N-Channel Vds - Drain-Source Breakdown Voltage: 60 V Id - Continuous Drain Current: 50 A Rds On - Drain-Source Resistance: 18 mOhms Vgs - Gate-Source Voltage: 20 V Maximum Operating Temperature: + 175 C Configuration: Single Fall Time: 250 ns Height: 9.01 mm Length: 10.41 mm Minimum Operating Temperature: - 55 C Pd - Power Dissipation: 190 W Rise Time: 250 ns Series: IRFZ48 Transistor Type: 1 N-Channel Typical Turn-Off Delay Time: 210 ns Typical Turn-On Delay Time: 8.1 ns FEATURES • Dynamic dV/dt Rating • Repetitive Avalanche Rated • Ultra Low On-Resistance • Very Low Thermal Resistance • 175 °C Operating Temperature • Fast Switching • Ease of Paralleling • Compliant to RoHS Directive 2002/95/EC PRODUCT SUMMARY VDS (V) 60 RDS(on) (Ω) VGS = 10 V 0.018 Qg (Max.) (nC) 110 Qgs (nC) 29 Qgd (nC) 36 Configuration Single

برای شوکر استفاده کردم خوب بود

تو بسته یه عدد ماسفت از یه مدل دیگه بود که اصلا ربطی به این مدل نداشت ..
